Name: Manual XRay Collimator For Medical X Ray DR Machine Led Lampdigital x ray machine
Brand: SAILRAY
Price: 1 USD

Brand Name : SAILRAY

Model Number : SR102

Place of Origin : CHINA

MOQ : 10

Payment Terms : T/T, Western Union

Supply Ability : 100 per month

Delivery Time : 30 work days

Packaging Details : Wooden Case

Price : Negotiation

Model No : SR102

Max Voltage : 125KV

Input Power : AC24V

Shell Material : Iron Shell

Sid : 100

contrast ratio : >4:1

Control Method : Manual

Weight(Kg) : 5.5

Contact Now

Max 125kv Manual X-ray Beam Collimator for Medical X-ray Machine

Applications:

This x-ray collimator is applicable for 3.5KW,10KW Bed mobile x-ray machine.

technical parameters:

Max Voltage	125KV
Maximum X-ray field coverage range	440mmx440mm (SID=100cm)
The average brightness of the light field	>160 lux
Edge contrast ratio	>4:1
Power supply requirement of projection lamp	24V/100W
Bright X-ray field duration for Once	30S
Distance from Focal Spot of X-ray tube tl he mount plane of collimator SFD (mm)(optional)	60
Filteration(Inherent) 75kV	1mmAl
Filteration(Additional)	optional
Control method	Manual
Drive motor	--
Motor Control	--
Position detectionC	--
Input power	AC24V
(SID)Measuring tape	Configuration
Center laser instructions	--
Dimension(mm)(W×L×H)	223x185x87
Weight(Kg)	5.5

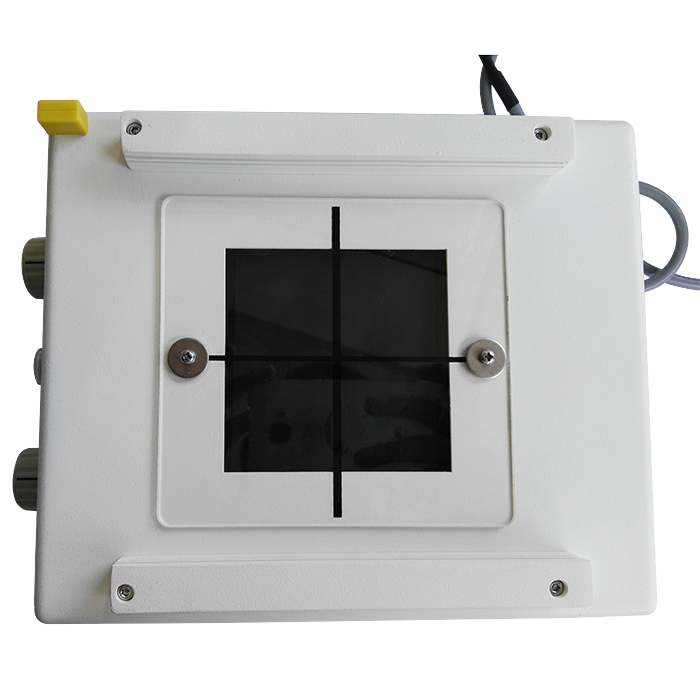

Detailed Images
